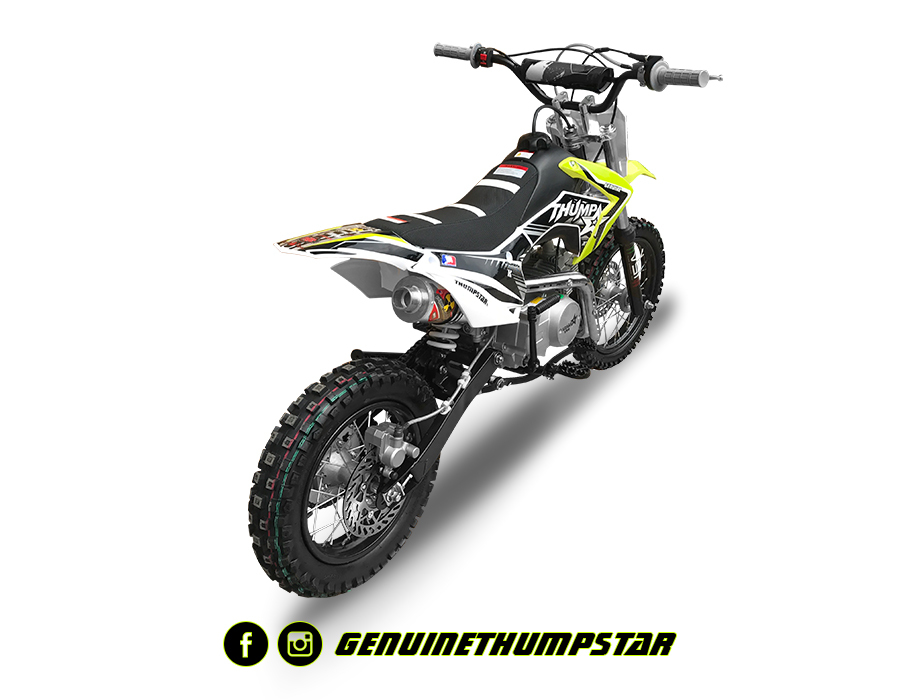

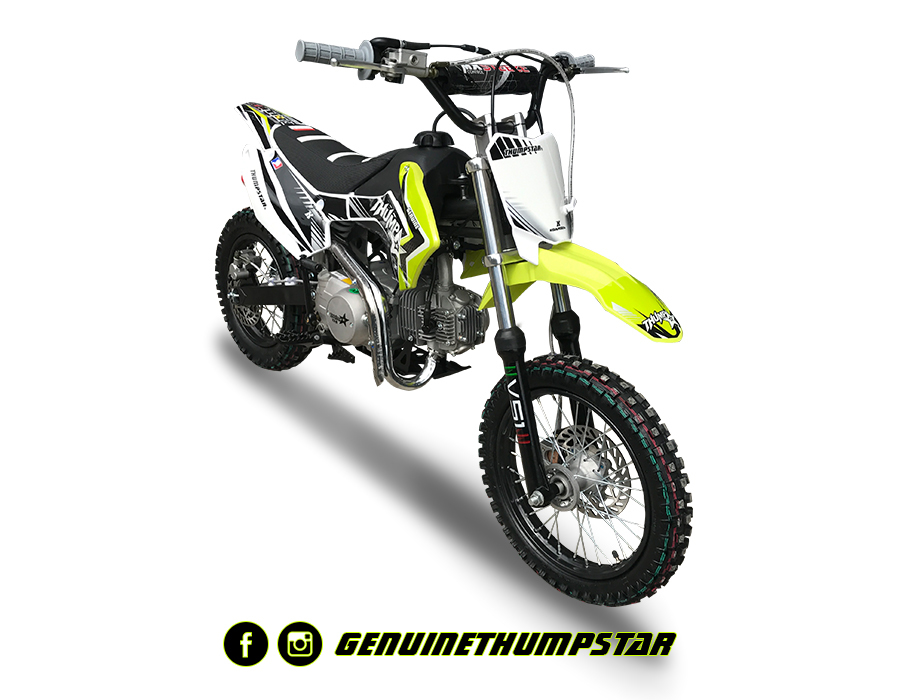

Genuine Thumpstar ® | TSR 125cc



  • YX 125cc Engine
  • 26mm Carb
  • 428 Chain
  • Rim Lock
  • Stripe Race Seat
Specification
ENGINE & TRANSMISSION
Engine:
YX | 4 Stroke | 11h.p | 90kph(depending on gearing)
CC Rating:
125cc
Gearbox:
Manual | 4 speed(N1234)
Starter:
Kick
Carburetion:
Standard 26mm
Exhaust:
Standard 28mm Exhaust System
Final Drive:
KMC 428 Chain
SUSPENSION, BRAKES & WHEELS
Suspension Front:
Conventional Forks | Length 630mm | 33/40mm Tube
Suspension Rear:
Mono shock | Length 285mm
Brakes Front:
Disc | Single Piston
Brakes Rear:
Disc | Single Piston
Wheel & Tyre Front:
Steel Rim | 70/100-14
Wheel & Tyre Rear:
Steel Rim w/ Rim Lock | 80/100-12
DIMENSIONS & WEIGHT
Wheelbase(axle to axle)
1080mm | 42"
Seat Height:
780mm | 31"
Carton Dimensions:
1320x355x640mm | .31 m3
Weight(n.w/g.w):
65/75kg | 143/165lbs
Tank Capacity:
3 Litres | .8 Gallon
