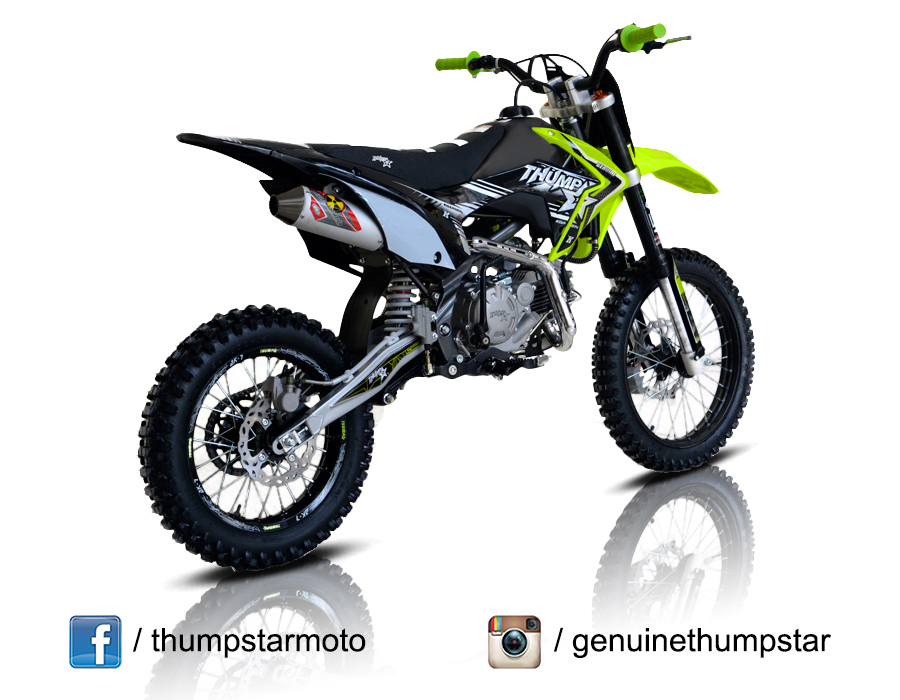

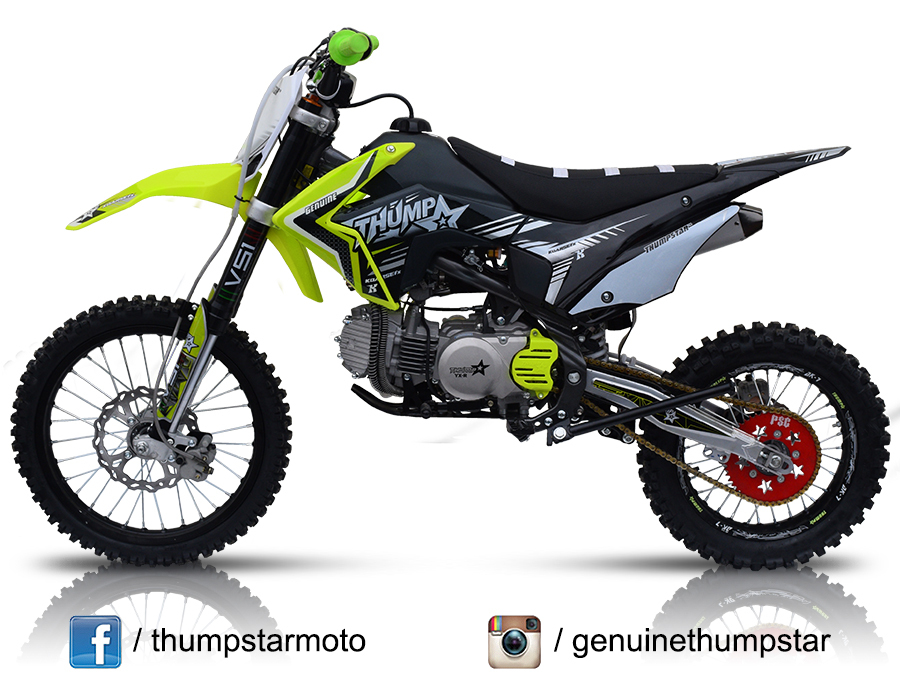

Genuine Thumpstar ® | TSR 180cc



  • 17/14inch Wheels (can also fit 14/12)
  • YX 180 Oil Cooled  Engine
  • Keihin PE 28
  • 4130 Chromoly Tri Frame with Cradle
  • Dual Piston HSK Front Brakes

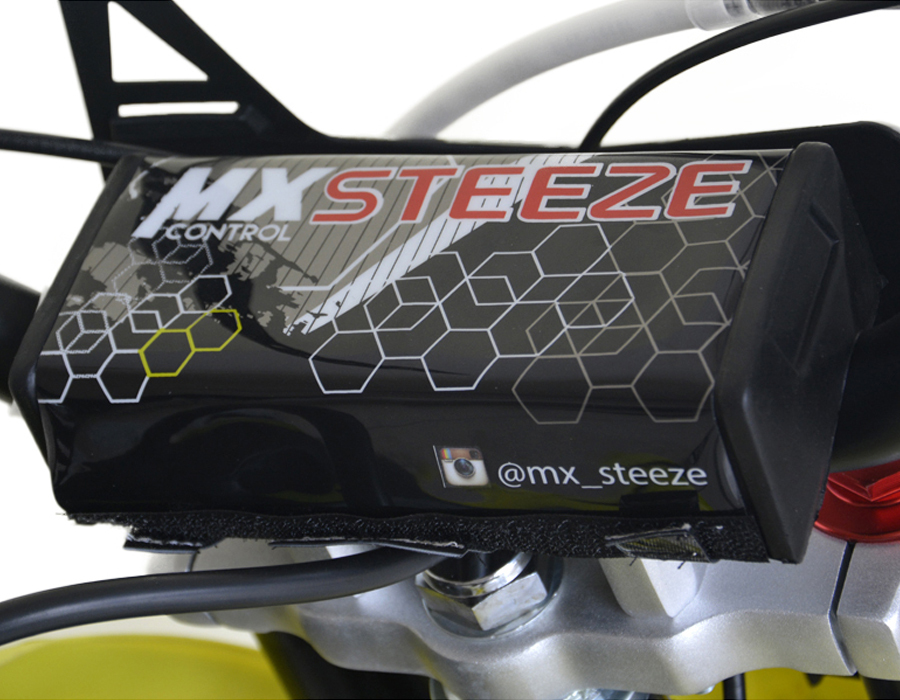

  • MX Steeze Fat Bar
  • VS1 Adjustable Front Suspension
Specification
ENGINE & TRANSMISSION
Engine:
YX | 4 Stroke | TBA h.p | 90kph(depending on gearing)
CC Rating:
180cc
Gearbox:
Manual | 4 speed(N1234)
Starter:
Kick
Carburetion:
Keihin PE 28
Exhaust:
Pipe Bomb DW1 38mm Exhaust System
Final Drive:
KMC 428 Chain
SUSPENSION, BRAKES & WHEELS
Suspension Front:
VS1 Fully Adjustable Forks | Length 770mm | 45/48
Suspension Rear:
Mono Shock w/ Linkage | Length 390mm
Brakes Front:
Disc | HSK Dual Piston
Brakes Rear:
Disc | HSk Single Piston
Wheel & Tyre Front:
Steel Rim | 70/100-17
Wheel & Tyre Rear:
AK-7 Alloy 7075 Rim w/ Rim Lock | 80/100-14
DIMENSIONS & WEIGHT
Wheelbase(axle to axle)
1260mm | 50"
Seat Height:
830mm | 33"
Carton Dimensions:
1620x385x735mm | .40 m3
Weight(n.w/g.w):
75/85kg | 165/187lbs
Tank Capacity:
5 Litres | 1.3gallon
